工程机械PLH08 超柔特氟龙软管
PLH08 超柔特氟龙软管
适用标准及认证:
FDA，USP，DIN26054-2

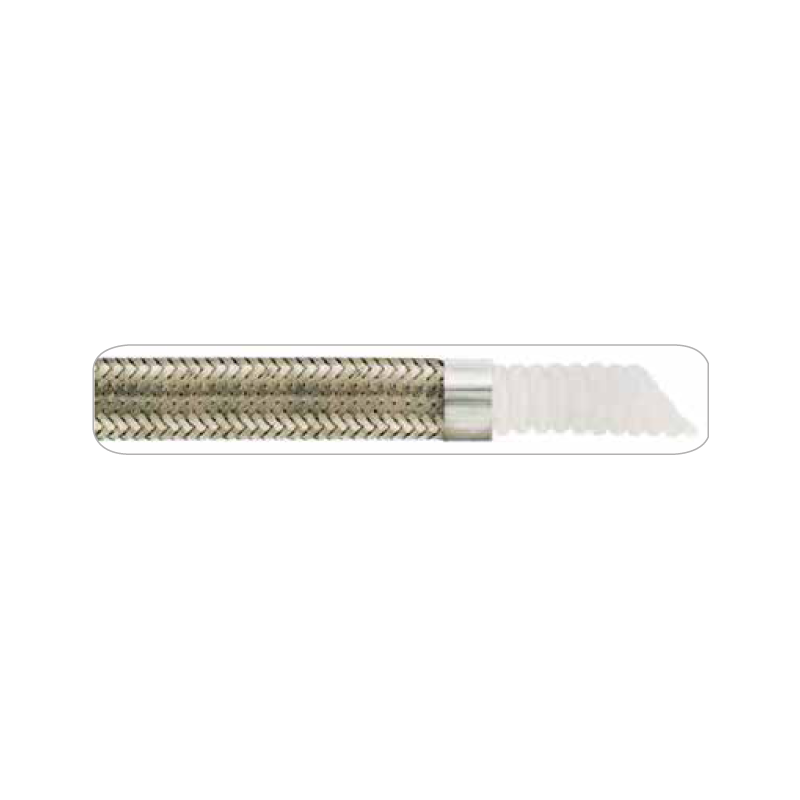

描述：里层为波纹状PTFE软管，外覆SS304不锈钢编织 ，特别柔软，并且在高温时都有极好的耐压性能，特别适用于需要弯曲性能极佳的场合
工作温度：-70°C至+260°C
可选项：标准与防静电内衬可供选择，通过ATEX认证
Standard/Approval:
FDA, USP，DIN 26054-2
Deion: A high profile, deep convoluted, medium wall PTFE hose available with or without external stainless steel vacuum spiral and 304 stainless steel over braid as standard.
Excellent vacuum and pressure ratings, even at elevated temperatures Choose when difficult routing or arduous flexing is required.
Temperature : -70°C to +260°C
Also available upon request: Virgin and anti-static liners available, ATEX Certified
- 产品详情
| 产品型号 | 尺寸 | 内径 | 外径 | 壁厚 | 工作压力 | 爆破压力 | 弯曲半径 | 真空 | 重量 | 长度 | ||
| code | Size | inside diameter | outside diameter | wall thickness | working pressure | burst pressure | bending radius | vacuum | weight nominal | length | ||
| PLH08 | (mm) | (min) | (max) | (min) | (mm) | (mm) | (bar) | (bar) | (mm) | (bar) | (kg/m) | (m) |
| PLH08005 | 1/4" | 5.5 | 6.9 | 9.9 | 11.5 | 0.75 | 35 | 170 | 25 | 0.744 | 0.08 | 20 |
| PLH08008 | 3/8" | 8.5 | 10.5 | 13.2 | 14.7 | 0.65 | 35 | 170 | 25 | 0.744 | 0.123 | 20 |
| PLH08011 | 1/2" | 11.6 | 13.6 | 12.9 | 14.4 | 0.75 | 60 | 300 | 25 | 0.887 | 0.14 | 20 |
| PLH08015 | 5/8" | 15.1 | 16.4 | 16.2 | 17.5 | 0.8 | 55 | 270 | 35 | 0.887 | 0.16 | 20 |
| PLH08019 | 3/4" | 19.5 | 20.5 | 28.6 | 31.4 | 1 | 60 | 290 | 55 | 0.887 | 0.39 | 20 |
| PLH08024 | 1" | 24.5 | 25.5 | 34.2 | 38.2 | 1 | 40 | 210 | 85 | 0.887 | 0.54 | 20 |
| PLH08031 | 1-1/4" | 31.5 | 32.5 | 41.9 | 46.1 | 1 | 40 | 210 | 100 | 0.887 | 0.68 | 20 |
| PLH08036 | 1-1/2" | 36.5 | 37.5 | 47.2 | 49.9 | 1.5 | 35 | 175 | 120 | 0.887 | 1.11 | 20 |
| PLH08044 | 1-3/4" | 44.5 | 45.5 | 55.8 | 61.4 | 1.5 | 25 | 135 | 135 | 0.887 | 1.65 | 20 |
| PLH08049 | 2" | 49.5 | 50.5 | 60.5 | 66.7 | 1.65 | 25 | 135 | 165 | 0.887 | 1.71 | 20 |
| PLH08062 | 2-1/2" | 62.5 | 63.5 | 80.9 | 89.1 | 1.6 | 16 | 80 | 230 | 0.887 | 2.14 | 20 |
| PLH08073 | 3" | 73.5 | 74.5 | 90.4 | 99.6 | 1.6 | 14 | 65 | 260 | 0.887 | 3.31 | 20 |
| PLH08094 | 4" | 94.5 | 99.5 | 121.1 | 127.5 | 1.82 | 10 | 40 | 300 | 0.887 | 4.05 | 20 |
| PLH08128 | 5" | 128 | 132 | 151 | 161 | 2.2 | 6 | 24 | 450 | 0.554 | 5.5 | 12 |
| PLH08150 | 6" | 150 | 154 | 179 | 189 | 2.5 | 6 | 24 | 520 | 0.554 | 6 | 12 |
